ASTM A106 F91 Pipa Fitting bertekanan tinggi untuk mesin ASTM A403

Deskripsi Produk

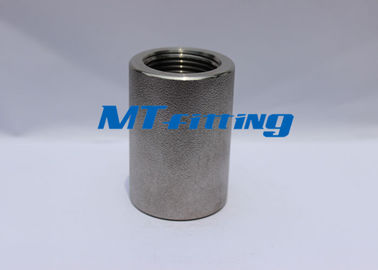

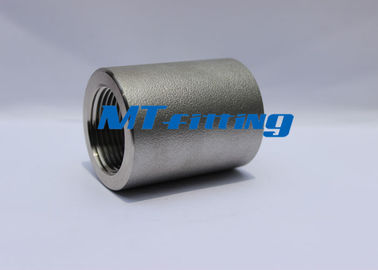

ASTM A106 F91 Ditempa Pipa Tekanan Tinggi Fitting, ASTM A403 Coupling Threaded End

1. Komoditi: Siku, Tee, Kopling, Kopling setengah, Cap, Plug, Bushing, Union, Out-let, puting susu Swage, Bullplug, sisipan Reducer, puting Hex, siku Jalan, Bos, dll.
2. Metode Proses: Ditempa
3. Bahan: Stainless Steel, Baja Karbon, dll
4. Standar: ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403, dll.
5. Rentang Ukuran: NPS 1/8 inci - 4 inci
6. Toleransi: sesuai dengan spesifikasi atau permintaan dan gambar pelanggan
7. Aplikasi: industri minyak & gas, industri kimia, tenaga listrik, boiler dan heat exchanger, mesin, metalurgi, konstruksi sanitasi dll.

MENGETIK:

A: Siku, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, puting susu Swage, Bullplug, sisipan Reducer, puting Hex, siku Jalan, Bos, dll.

Socket-welded, Threaded (tipe NPT atau PT).

B: Butt-welding

UKURAN: NPS 1/8 inci - 4 inci

RATING:

Tekanan: Threaded end: 2000/3000/6000 LBS

Socket-welded end: 3000/6000/9000 LBS

Butt dilas akhir: Sch40 / Sch80 / Sch160 / XXS

SPESIFIKASI:

A. DIM. SPEC .:

GB / T 7306, 12716, 14383, 14626

ASME B16.11-2001 (Revisi ASME SB16.11-1996)

MSS-SP-79,83,95,97 dan keduanya spec.

JS B0203, B2316

B. MATERAL SPEC:

ASTM A105, A305LF2, A106, A312, A234, A403

GB / T 699 20MM

ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)

GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)
