Deskripsi Produk

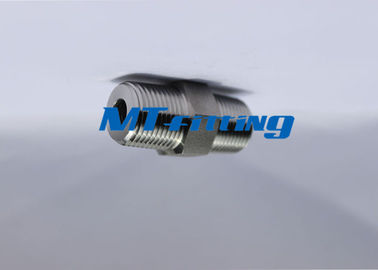

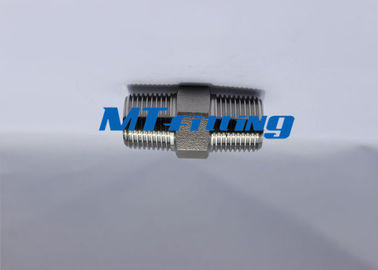

ASTM A403 Weldeding Outlet Stainless Steel 6000LBS Pipa Tekanan Tinggi untuk Industri Medis
MENGETIK:
A: Siku, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, puting susu Swage, Bullplug, sisipan Reducer, puting Hex, siku Jalan, Bos, dll.
Socket-welded, Threaded (tipe NPT atau PT).
B: Butt-welding
UKURAN: NPS 1/8 inci - 4 inci
RATING:
Tekanan: Threaded end: 2000/3000/6000 LBS
Socket-welded end: 3000/6000/9000 LBS
Butt dilas akhir: Sch40 / Sch80 / Sch160 / XXS
SPESIFIKASI:
A. DIM. SPEC .:
GB / T 7306, 12716, 14383, 14626
ASME B16.11-2001 (Revisi ASME SB16.11-1996)
MSS-SP-79,83,95,97 dan keduanya spec.
JS B0203, B2316
B. MATERAL SPEC:
ASTM A105, A305LF2, A106, A312, A234, A403
GB / T 699 20MM
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)
| Bahan Grade | F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, dll. |
| Ukuran | NPS 1/8 inci - 4 inci |
| Standar | ASME B16.11 |
| Metode Proses | Ditempa / Pengecoran |
Komposisi Kimia Standar ASTM A403:
| Elemen | WP304L (wt%) / CR304L / S30403 | 304 (wt%) / CR304 / S30400 | 316L (wt%) / CR316L / S31603 | 316 (wt%) / CR316 / S31600 |
| (C) Karbon, maks | 0,03 | 0,08 | 0,03 | 0,08 |
| (Mn) Manganese, maks | 2 | 2 | 2 | 2 |
| (P) Fosfor, maks | 0,045 | 0,045 | 0,045 | 0,045 |
| (S) Sulfur, maks | 0,03 | 0,03 | 0,03 | 0,03 |
| (Si) Silikon, maks | 1 | 1 | 1 | 1 |
| (Ni) Nikel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Kromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molibdenum | N / A | N / A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Besi | Bal. | Bal. | Bal. | Bal. |
| (Cu) Tembaga | N / A | N / A | N / A | N / A |
| (N) Nitrogen | N / A | N / A | N / A | N / A |
1. Komoditi: Siku, Tee, Kopling, Kopling setengah, Cap, Plug, Bushing, Union, Out-let, puting susu Swage, Bullplug, sisipan Reducer, puting Hex, siku Jalan, Bos, dll.
2. Metode Proses: Ditempa
3. Bahan: Stainless Steel, Baja Karbon, dll
4. Standar: ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403, dll.
5. Rentang Ukuran: NPS 1/8 inci - 4 inci
6. Toleransi: sesuai dengan spesifikasi atau permintaan dan gambar pelanggan
7. Aplikasi: industri minyak & gas, industri kimia, tenaga listrik, boiler dan heat exchanger, mesin, metalurgi, konstruksi sanitasi dll.
