Rumah ProdukStainless Steel Tubing Coiled08/03 Inch ASTM A269 Diameter Kecil Stainless Steel Welded Super Long Coiled Tabung Baja

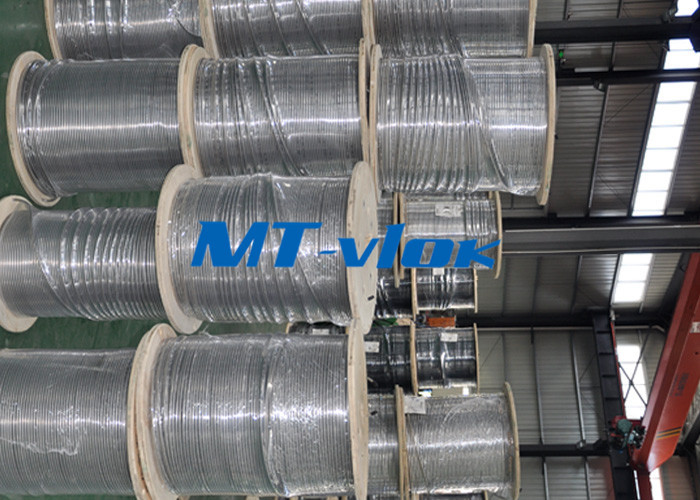

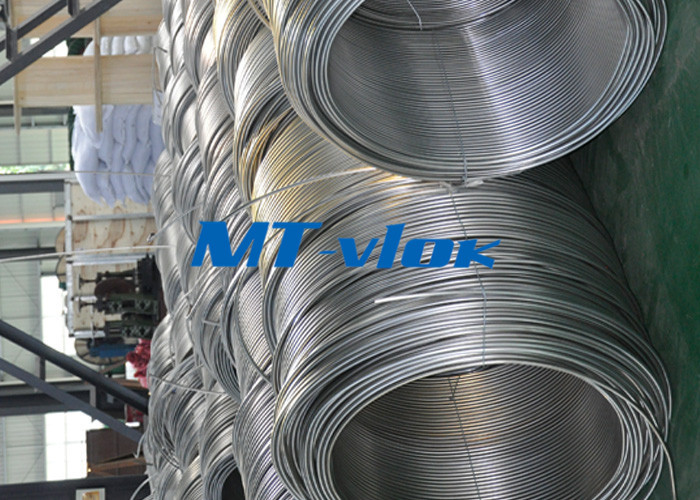

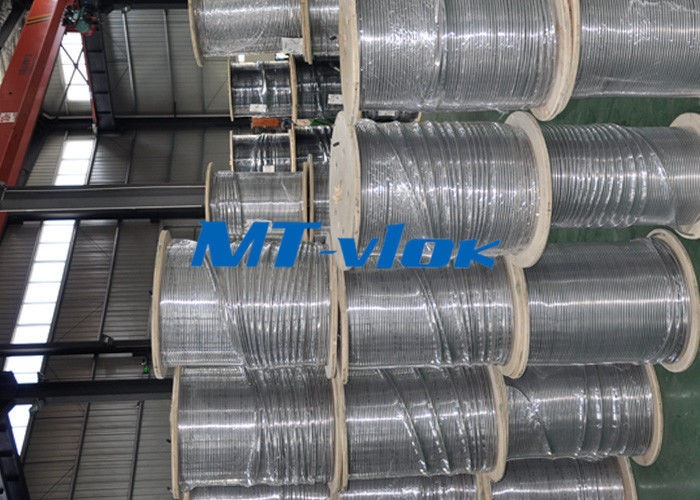

3 / 8 Inch ASTM A269 Small Diameter Stainless Steel Welded Super Long Coiled Steel Tubing
3 / 8 Inch ASTM A269 Small Diameter Stainless Steel Welded Super Long Coiled Steel Tubing 3 / 8 Inch ASTM A269 Small Diameter Stainless Steel Welded Super Long Coiled Steel Tubing 3 / 8 Inch ASTM A269 Small Diameter Stainless Steel Welded Super Long Coiled Steel Tubing 3 / 8 Inch ASTM A269 Small Diameter Stainless Steel Welded Super Long Coiled Steel Tubing
Hubungi sekarang

08/03 Inch ASTM A269 Diameter Kecil Stainless Steel Welded Super Long Coiled Tabung Baja

Kuantitas min Order : Negotiable Harga : 5500-10000USD/TON
Kemasan rincian : Iron Kasus / Plywood Kasus Waktu pengiriman : 30 hari
Syarat-syarat pembayaran : T / T; L / C Menyediakan kemampuan : 300 ton/bulan
Tempat asal: Cina Nama merek: MTSCO
Sertifikasi: ISO 9001 & PED & AD2000 Nomor model: MTSCOSSCT50

Informasi Detail
Bahan: TP304 / 304L Standar: ASTM A269 / ASTM A213 Dll
Pengiriman Kondisi: Lembut / Hard Setiap Coil: Tentang 30kgs Per / Coil
Tipe: Mulus Permukaan: Bright Anil / acar
Menyoroti:

stainless steel coil pipa

,

mulus stainless steel pipa

Deskripsi Produk

3/8 Inch ASTM A269 Diameter Kecil Stainless Steel Dilas Super Panjang Coiled Tube

Di mana tabung melingkar digunakan?

1. Kontrol tabung di sumur minyak dan gas
2. Tubing instrumen
3. Jalur tabung injeksi Chemicl
4. Pipa pra-insulasi
5. Pemanas listrik atau saluran pipa penghangat uap
6. Garis tabung pembenci

Spesifikasi:

DN NPS (Inch) D (mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88,90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4 114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5 141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6 168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21,95
200 8 219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23,01 22.23
250 10 273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28,58 25.40


Komposisi kimia :

Bahan ASTM A269 Komposisi Kimia% Max
C M N P S Si Cr Ni Mo NB Nb Ti
TP304 0,08 2 0,045 0,03 1 18.0-20.0 8.0-11.0 ^ ^ ^. ^
TP304L 0,035 2 0,045 0,03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0,08 2 0,045 0,03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0,035 D 2 0,045 0,03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0,08 2 0,045 0,03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0,70
TP347 0,08 2 0,045 0,03 1 17.0-19.0 9.0-12.0 　 　 10C -1.10 ^

Ukuran OD: 4.76 - 25.4mm
WT: 0,71 - 2,11mm
Panjang:> 1000Meter
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm

Label:

mulus stainless steel pipa

tabung stainless melingkar

stainless steel coil pipa
