Deskripsi Produk

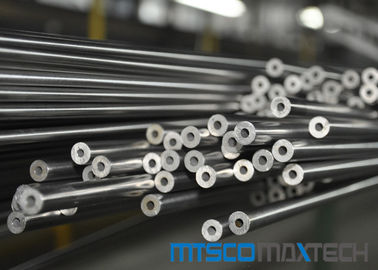

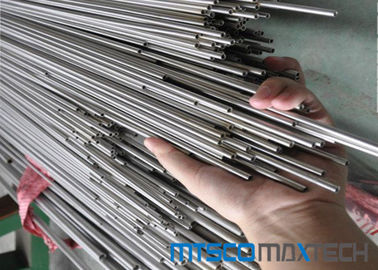

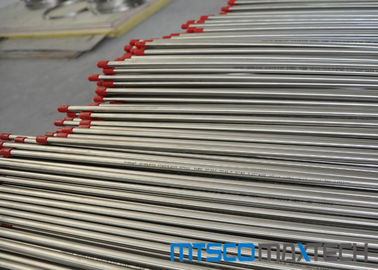

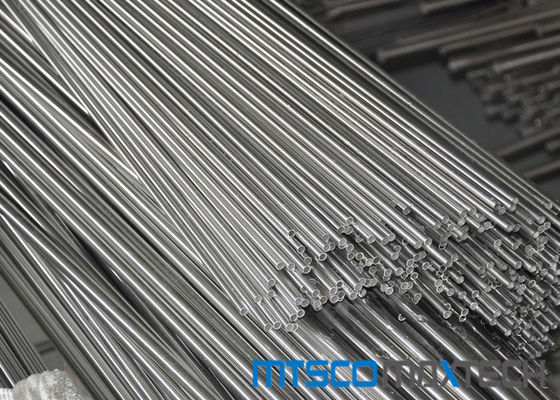

TP316 / 316L / 321 / 321H Cold Rolled Stainless Steel Sanitary Tube Untuk Chromatogrphy
Aplikasi:
1. Industri layanan umum (minyak bumi, makanan, kimia, kertas, pupuk, kain, penerbangan, dan nuklir)
2. Transportasi fluida, gas, dan minyak
3. Transmisi tekanan dan panas
4. Konstruksi dan ornamen
5. Penukar boiler dan panas
6. Penggunaan dekoratif (fasilitas lampu jalan, pegangan jembatan, pagar tol, halte, bandara, dan gimnasium)
Spesifikasi:
| DN | NPS (Inch) | D (mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
| 15 | 1/2 | 21.30 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88,90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21,95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23,01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28,58 | 25.40
|
Spesifikasi:
Ukuran
| OD: 4.76 - 25.4mm |
WT: 0,71 - 2,11mm |
Panjang:> 1000Meter |
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm |
6 * 1mm / 6 * 1.5mm |
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm |
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm |
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm |
10 * 1mm / 10 * 1.5mm |
12 * 1mm / 12 * 1.5mm / 12 * 2mm |
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm |
14 * 1mm / 14 * 1.5mm / 14 * 2mm |
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm |
16 * 1mm / 16 * 1.5mm / 16 * 2mm |
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm |
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
Tabung sanitasi anil terang memiliki permukaan bagian dalam yang sangat bersih. MTSCO memiliki teknologi tinggi kami sendiri, ketika tabung telah diproduksi mereka sudah membersihkan permukaan bagian dalam, meskipun kami belum membersihkannya. Sebabnya, kita akan membersihkannya nanti. Jadi ketika kita selesai proses bersih, tabung benar-benar cukup bersih!
Tabung MTSCO dapat digunakan dalam industri layanan umum (minyak bumi, makanan, kimia, kertas, pupuk, kain, penerbangan dan nuklir), industri transportasi bahan bakar & gas & minyak, industri transmisi tekanan dan panas, industri konstruksi dan ornamen, penukar boiler dan penukar panas industri, penggunaan dekoratif (fasilitas lampu jalan, pegangan jembatan, pagar tol, halte, bandara dan gimnasium) dll.
