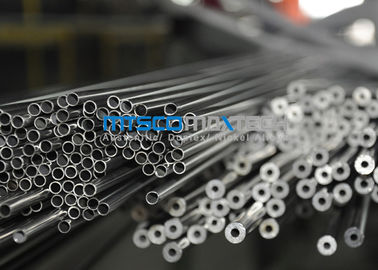

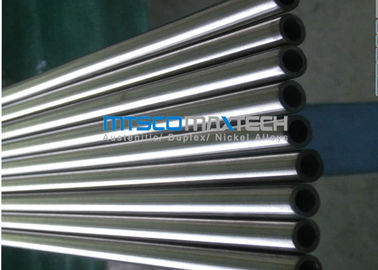

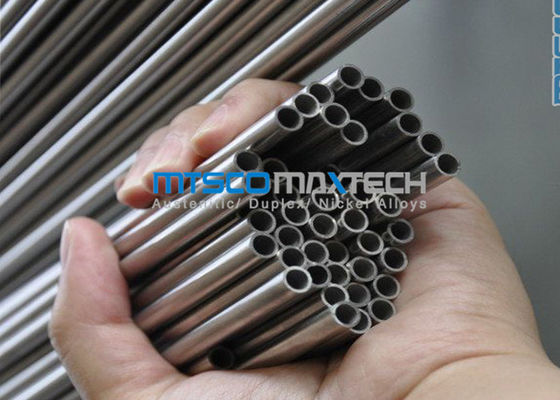

310S ASTM A269 Stainless Steel Seamless Tube Untuk Heat Exchanger
Detail produk:
|
|
Tempat asal: | Cina |
---|---|
Nama merek: | MTSCO |
Sertifikasi: | ISO 9001 & PED & AD2000 |
Nomor model: | MTSCOSSST30 |
Syarat-syarat pembayaran & pengiriman:
|
|
Kuantitas min Order: | Negotiable |
Harga: | 4300-9800USD/TON |

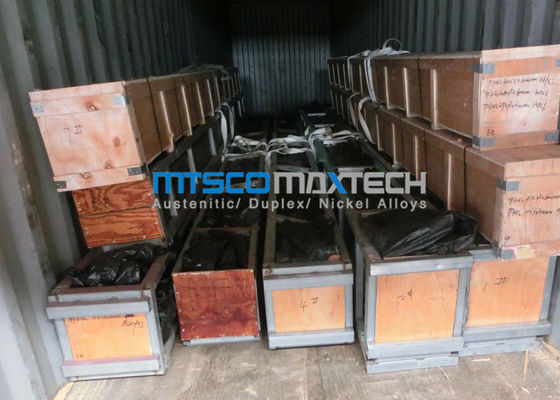

Kemasan rincian: | Iron Kasus / Plywood Kasus |
Waktu pengiriman: | 30 hari |
Syarat-syarat pembayaran: | T / T; L / C |
Menyediakan kemampuan: | 300 ton/bulan |
Informasi Detail |
|||
Bahan: | 304 / 304L / 316 / 316L | Jenis: | Mulus |
---|---|---|---|
Teknologi: | Dingin digulung | Panjang: | 6096mm |
Kondisi: | Lembut / Hard | tes: | 100% |
Cahaya Tinggi: | Stainless Steel Seamless Tubing,ss Seamless Tubing |
Deskripsi Produk
ASTM A269 / ASME SA269 04/01 Tabung Inch Stainless Steel Seamless Untuk Boiler
Komposisi ASTM A269 Kimia:
elemen | 304L (wt%) S30403 | 304 (wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
(C) Karbon, max | 0,035 | 0.08 | 0,035 | 0.08 |
(Mn) Mangan, max | 2 | 2 | 2 | 2 |
(P) Fosfor, max | 0,045 | 0,045 | 0,045 | 0,045 |
(S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 | 1 | 1 |
(Ni) Nikel | 8,0-12,0 | 8,0-11,0 | 10,0-14,0 | 10,0-14,0 |
(Cr) Kromium | 18,0-20,0 | 18,0-20,0 | 16,0-18,0 | 16,0-18,0 |
(Mo) Molibdenum | N / A | N / A | 2,0-3,0 | 2,0-3,0 |
(Fe) Besi | Bal. | Bal. | Bal. | Bal. |
(Cu) Tembaga | N / A | N / A | N / A | N / A |
(N) Nitrogen | N / A | N / A | N / A | N / A |
Bahan Grade: TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, S31803, S32750, S32205 dll
Outer Diameter: 6.00mm - 48.00mm
Dinding Tebal: 0.71mm - 2.11mm
Panjang: panjang Biasanya tetap 6m, dapat sesuai kebutuhan pelanggan
Standard: A213 ASTM; ASTM A269; ASTM A312; ASTM A789; ASTM A790 dll.
Proses Metode: dingin ditarik atau Cold Rolled
Aplikasi:
a) Untuk cairan & gas transportasi
b) Struktur & mesin
c) Petrochemical
d) Perlindungan lingkungan
e) Listrik
f) industri Instrumen dll
Keuntungan:
a) permukaan akhir Unggul
b) sifat mekanik yang lebih baik
c) dimensi lebih tepat
d) metode inspeksi sempurna dan peralatan inspeksi
Harga Barang FOB, CFR, CIF atau sebagai negosiasi
spesifikasi:
DN | NPS (Inch) | D (mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
6 | 1/8 | 10.30 | - | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | - | - |
8 | 1/4 | 13,70 | - | 1,65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | - | - |
10 | 3/8 | 17.10 | - | 1,65 | 2.31 | 2.31 | 2.31 | 3.20 | 3.20 | 3.20 | - | - |
15 | 1/2 | 21.30 | 1,65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 |
20 | 3/4 | 26.70 | 1,65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 |
25 | 1 | 33,40 | 1,65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 |
32 | 1 1/4 | 42.20 | 1,65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 |
40 | 1 1/2 | 48,30 | 1,65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 |
50 | 2 | 60,30 | 1,65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11,07 |
65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9,53 | 14.02 |
80 | 3 | 88,90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
90 | 3 1/2 | 101,60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
100 | 4 | 114,30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17,12 |
125 | 5 | 141,30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9,53 | 9,53 | 9,53 | 15.88 | 19,05 |
150 | 6 | 168,30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18,26 | 21.95 |
200 | 8 | 219,10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23,01 | 22.23 |
250 | 10 | 273,10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28,58 | 25,40 |
