Deskripsi Produk

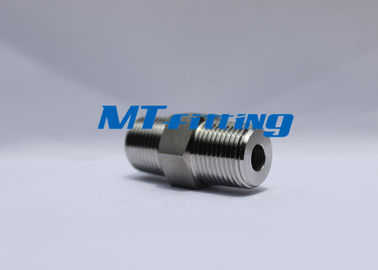

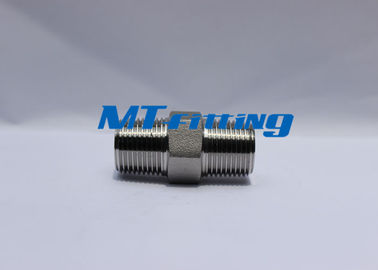

ASTM A182 F304L / 316L Stainless Steel Hex Nipple Threaded Ditempa Fitting Tekanan Tinggi
| Grade Material | F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91, dll. |
| Ukuran | NPS 1/8 inci- 4 inci |
| Standar | ASME B16.11 |
| Metode Proses | Ditempa / Casting |
| 1 Komoditas: Siku, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, dll. |
| 2 Metode Proses: Ditempa |
| 3 Bahan: Stainless Steel, Baja karbon, dll |
| 4. Standar: ASME / ANSI B16.1, ASTM A105, A305LF2, A106, A312, A234, A403, dll. |
| 5. Rentang Ukuran: NPS 1/8 inci- 4 inci |
| 6 Toleransi: sesuai spesifikasi atau permintaan dan gambar pelanggan |
| 7 Aplikasi: industri minyak & gas, industri kimia, tenaga listrik, boiler dan penukar panas, mesin, metalurgi, konstruksi sanitasi dll. |
MENGETIK:
A: Siku, Tee, Coupling, Half coupling, Cap, Plug, Bushing, Union, Out-let, Swage nipple, Bullplug, Reducer insert, Hex nipple, Street elbow, Boss, dll.
Socket-welded, Threaded (NPT atau tipe PT).
B: Butt-welding
SIZE: NPS 1/8 inci- 4 inci
RATING:
Tekanan: Ujung berulir: 2000/3000/6000 LBS
Ujung-ujung yang dilas: 3000/6000/9000 LBS
Ujung las akhir: Sch40 / Sch80 / Sch160 / XXS
SPESIFIKASI:
A. DIM. SPEC .:
GB / T 7306, 12716, 14383, 14626
ASME B16.11-2001 (Revisi ASME SB16.11-1996)
MSS-SP-79,83,95,97 dan spesifikasi bothwell.
JS B0203, B2316
B. MATERAL SPEC:
ASTM A105, A305LF2, A106, A312, A234, A403
GB / T 699 20 MM
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
GB (0Cr18Ni10Ti, 0Cr18Ni9, 0Cr18Ni10, 00Cr17Ni12Mo2, 00Cr18Ni14Mo2, 00Cr19Ni15Mo3.5, 0Cr18Ni11Nb, 0Cr25Ni20)
Ukuran bahan baku: Dia. Bilah bulat 19-85mm.
PENANDAAN:
A. Karbon dan baja paduan: Ditandai dengan stamping.
B. Stainless steel: Ditandai dengan elektro-tergores, jetprinted atau stamping.
C. 3/8 inci di bawah: Hanya merek
D. 1/2 inci hingga 4 inci: Ditandai dengan merek, bahan, panas B16 (untuk produk ASME B16.11), tekanan dan ukuran.
FINISHING: Baja karbon: Galcanized atau Hitam
Stainless steel: Acar
PACKING: Cartion / kasus kayu
Kasus Plywooden
Komposisi Kimia Standar ASTM A182 / A182M:
| Elemen | 304L (wt%) / F304L / S30403 | 304 (wt%) / F340 / S30400 | 316L (% wt) / F316L / S31603 | 316 (% wt) / F316 / S31600 | 310 (wt%) / F310 / S31000 |
| (C) Karbon, maks | 0,03 | 0,08 | 0,03 | 0,08 | 0,25 |
| (Mn) Mangan, maks | 2 | 2 | 2 | 2 | 2 |
| (P) Fosfor, maks | 0,045 | 0,045 | 0,045 | 0,045 | 0,045 |
| (S) Sulphur, maks | 0,03 | 0,03 | 0,03 | 0,03 | 0,03 |
| (Si) Silikon, maks | 1 | 1 | 1 | 1 | 1 |
| (Ni) Nikel | 8.0 - 13.0 | 8.0 - 11.0 | 10,0 - 15,0 | 10,0 - 14,0 | 19,0 - 22,0 |
| (Cr) Chromium | 18,0 - 20,0 | 18,0 - 20,0 | 16,0 - 18,0 | 16,0 - 18,0 | 24,0 - 26,0 |
| (Mo) Molybdenum | T / A | T / A | 2.0 - 3.0 | 2.0 - 3.0 | T / A |
| (Fe) Besi | T / A | T / A | T / A | T / A | T / A |
| Tembaga (Cu) | T / A | T / A | T / A | T / A | T / A |
| (N) Nitrogen | T / A | T / A | T / A | T / A | T / A |
